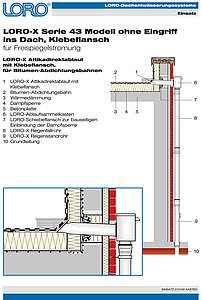

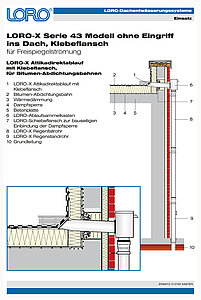

LORO-X Series 43 model without roof penetration

The model without roof penetration with adhesive flange is characterised by particularly space-saving dimensions with a low installation depth. Below the adhesive flange with 45-degree upstand for bitumen membranes there is no additional basin, so no recess has to be cut into the thermal insulation.

Thanks to its special "square to round" design, the lateral outlet pipe with its wider base already discharges more than normal round pipes at low water levels.

The emergency drains of the model without roof penetration offer a large circumference above the damming element for the water to overflow, which is then accelerated into the outlet pipe via the special slope.

The model without roof penetration is therefore ideally suited for smaller roof areas, for example in residential construction, for carports or canopies, in commercial construction for smaller office buildings and on accessible flat roofs such as terraces.
