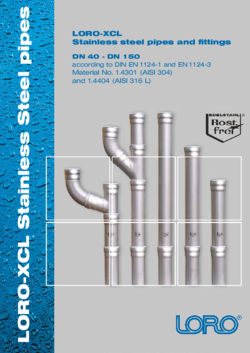

LORO-XCL Stainless Steel
Description
Pipes and fittings DN 40 - DN 150 according to DIN EN 1124-1 and EN 1124-3
LORO-XCL stainless steel drainage pipes with the proven LORO-X push-fit socket connection and various sealing elements for different stresses are manufactured from "rustproof" stainless steel in the material numbers 1.4301 (AISI 304) as standard and 1.4404 (AISI 316L) for higher stresses.
The surface of our pipes and fittings made of solid stainless steel complies with DIN EN 10088-2:2005 – designation D2 pickled, no additional surface treatment.
Waste water pipe in A1 quality
In industrial and domestic environments with higher stresses, waste water drainage is increasingly no longer made of combustible plastic but of sustainable steel or stainless steel. LORO-X stainless steel drainage pipes and the special LORO-X sealing elements form a safe and easy-to-install pipe system with push-fit socket connection, also for higher stresses. Pipes and sealing elements are resistant to high temperatures and chemicals, so they can be used in a wide variety of industries.
Thick wall
The wall thickness (wall gauge) of LORO-XCL stainless steel drainage pipes is significantly higher in the common nominal diameters than that of conventional stainless steel pipes for drainage, so that a longer service life and resistance is achieved even under high loads. They offer significantly greater safety when problematic waste water has to be drained in large kitchens, industry and commerce, where conditions are hot and aggressive.
Advantages
- Thick wall compared to conventional stainless steel pipes
- Impact-resistant, shock-resistant and dimensionally stable thanks to the high wall thickness
- Reduced susceptibility to pitting corrosion
- More durable and more sustainable
| Nominal diameter | Conventional pipes | LORO-XCL | Added value in % |
|---|---|---|---|
| DN 70 | 1.0 mm | 1.2 mm | + 20 % |
| DN 100 | 1.0 mm | 1.2 mm | + 20 % |
| DN 125 | 1.0 mm | 1.5 mm | + 50 % |
Original LORO-X push-fit socket
LORO-XCL stainless steel drainage pipes also use the original LORO-X 2-chamber push-fit socket connection. Particularly at higher flow velocities, vibrations and pressures in the pipe system, it provides greater safety than conventional roll rings or simple push-fit sockets, as the second socket chamber fixes the connection centrally and ensures a deeper insertion.
Advantages
- Quick and easy installation: no welding – just push-fit
- Backflow-proof and buckling-resistant with stable sealing chamber
- Centring and increased insertion depth thanks to the second socket chamber
Areas of application
- In industry and commerce
- In large kitchens and research facilities
- In the fat and soap industry
- In the food industry
- In dairies and the beverage industry
- Hot and/or aggressive problematic waste water
- Various acids, chemical products
- When cleaning agents are used
- For pipes with condensate accumulation
Conventional thin-walled stainless steel pipes do not meet these requirements, or only with too many restrictions.
Further advantages
- Resistant to mechanical, chemical and thermal stresses
- Resistant to aggressive media
- Resistant to a range of organic and inorganic acids
- High temperature resistance to heat and cold
- Non-combustible, building material class A1
- Low weight and low fastening effort
- Good corrosion resistance in 1.4301 or 1.4404
- Under certain conditions against chlorine-containing media
