Because balcony drainage is normatively treated like a walkable or utilised flat roof, the design principles known from flat roof drainage are often applied to balconies.

Safety with measured performance verification

Changing rain events also lead to an increasing safety awareness on balconies, as the adjacent interior spaces should under no circumstances be flooded. This puts a secure dimensioning of the balcony drainage with measured performance verification in the LX data sheet and a secure balcony emergency drainage increasingly in focus.

Protection from spouts

In addition to protecting adjacent interior spaces, protection of utilised areas below is also required. Safe downpipes are definitely preferable to conventional water spouts, especially above entrances, walkways or gardens, as the water jet falling from above can cause disruptions there.

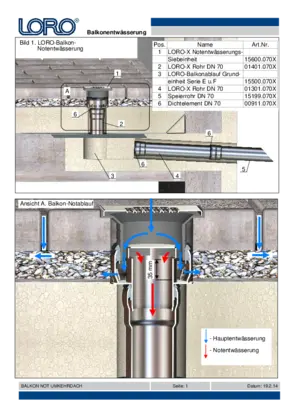

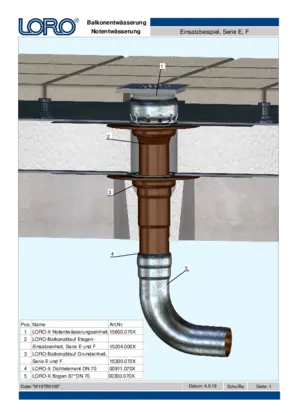

Emergency drainage unit for Series E/F

Space-saving dimensions

The smaller LORO-X balcony emergency drainage unit is characterised by space-saving dimensions. The flow rate of 1.0 l/s at 75mm water height is achieved with and without downpipe, which corresponds to a balcony area of up to approx. 23 square metres (LX1933).

Higher flow rate

The new LORO-X balcony emergency drainage unit with enlarged circumference and enlarged inlet openings achieves a flow rate of 1.7 l/s at 75 mm water height on the balcony with and without downpipe, which corresponds to a balcony area of up to approx. 55 square metres (LX1966).

Advantages

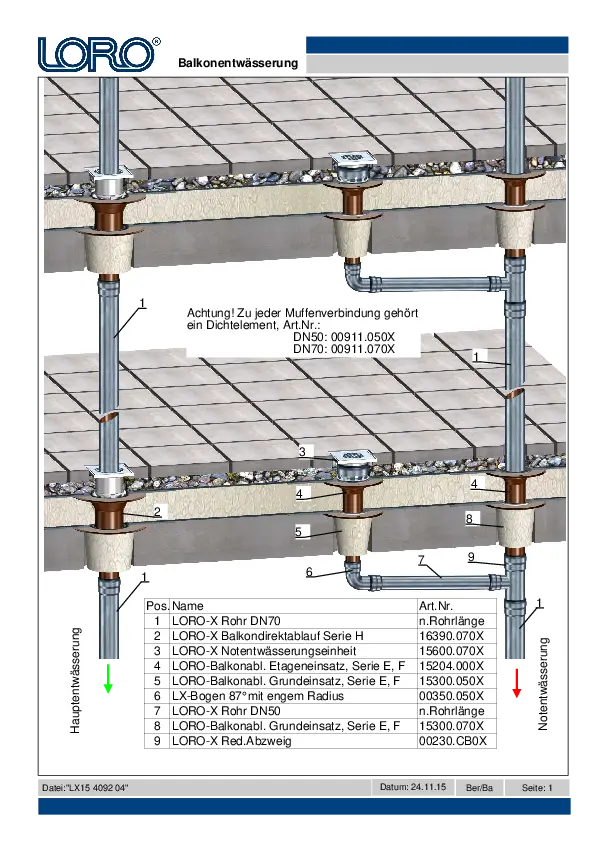

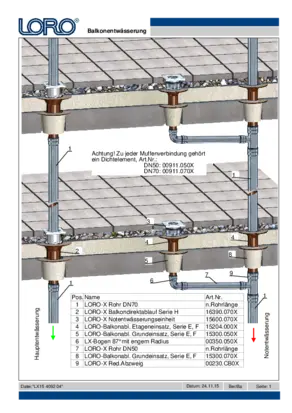

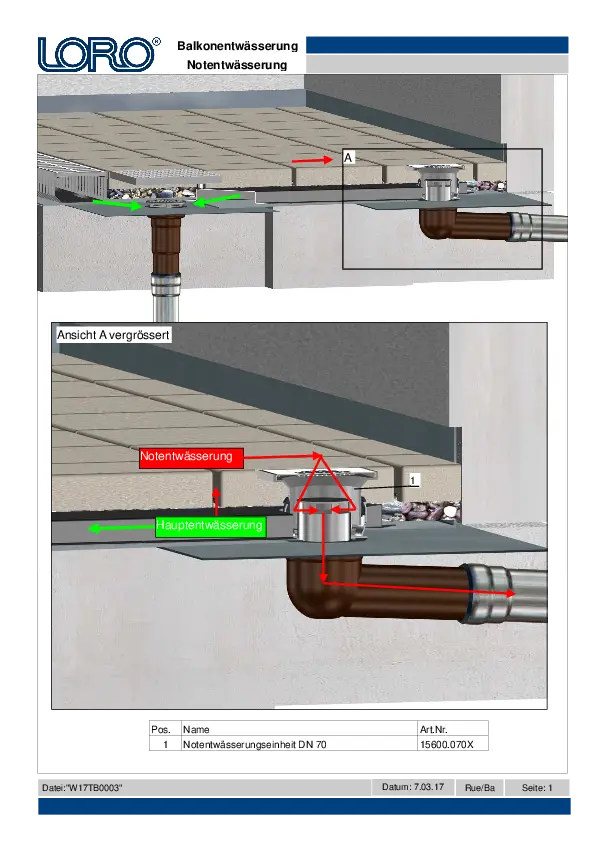

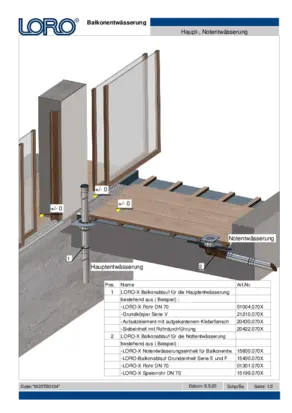

• Controlled main drainage with downpipe to the ground line

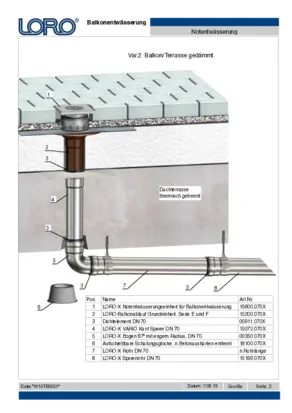

• Controlled emergency drainage with retaining element and downpipe to the outside

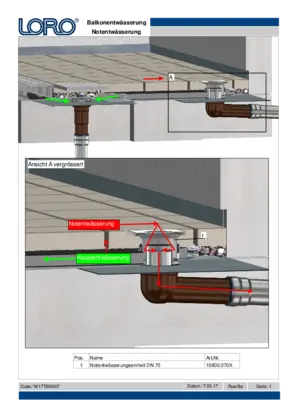

• Suitable for base bodies of Series E and F
• LORO-X emergency drainage units DN 70 fit into balcony drains of Series E and F in DN 50 and DN 70!
