LORO-X Series 84 DRAINLET gravity flow with standard hood

LORO-X Series 84 DRAINLET flat roof drainage with gravity flow (PDF)
Series 84 (PDF)
Assembly diagram LORO-DRAINLET Series 84: flat roof drains and emergency drains for gravity flow with clamping flange (PDF)

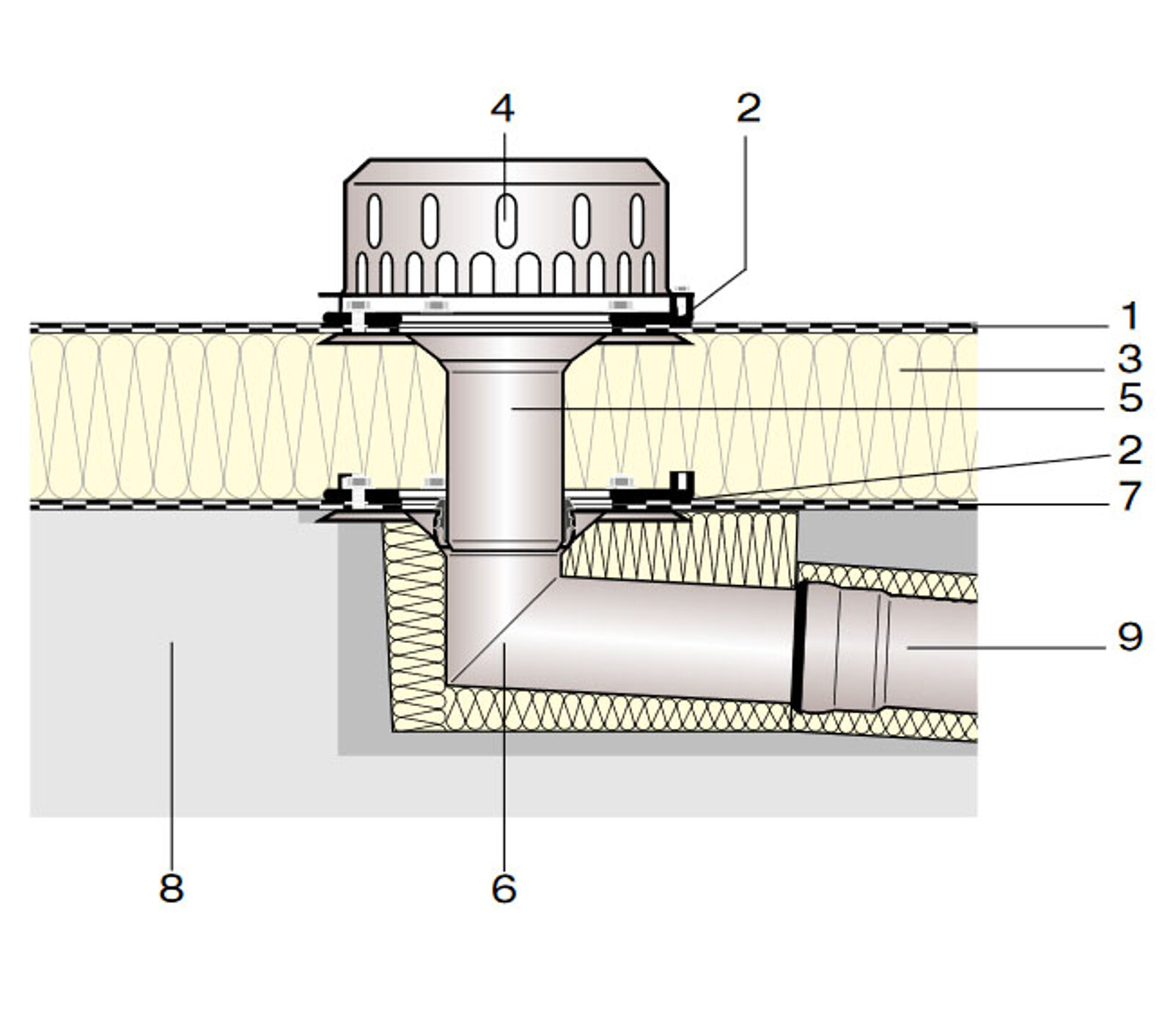

Assembly diagram

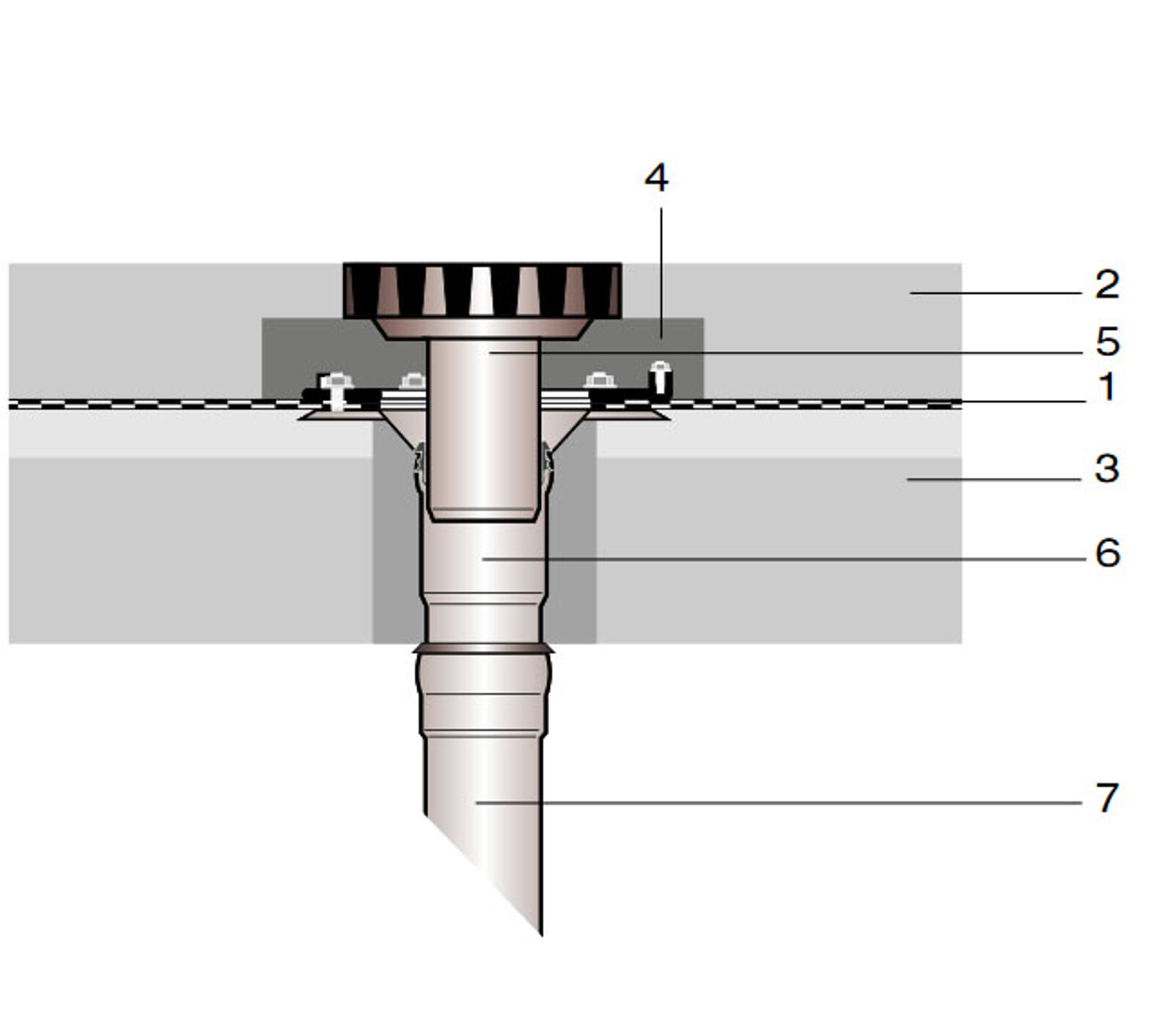

The LORO-X DRAINLET® main drainage and emergency drainage with gravity flow are characterized by space-saving dimensions without a "pot" in the roof area and a high drainage through the powerful LORO-X hood with ventilation openings. They are suitable for flat roofs as warm, cold and inverted roofs, for green roofs, trafficable roof surfaces and trapezoidal sheet metal roofs, as well as for box gutters.

LORO-X DRAINJET for siphonic flow can be found here.

Clamping flange for bitumen and plastic

The clamping flange as a loose and fixed flange construction is equally suitable for sealing sheets (drain) and vapor barriers (2-piece) made of bitumen and plastic.

Application examples

Warm roof, reinforced concrete deck, bitumen waterproofing

3D model – application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation in a warm roof on a reinforced concrete deck, bitumen waterproofing, building cut along the drain axis
3D view: click and rotate with the mouse
Application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation in a warm roof on a reinforced concrete deck, bitumen waterproofing – oblique view from the front
Oblique view from the front
Application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation in a warm roof on a reinforced concrete deck, bitumen waterproofing – oblique view from the front, cut open
Oblique view from the front, cut open
Application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation in a warm roof on a reinforced concrete deck, bitumen waterproofing – view from the front, cut open
View from the front, cut open

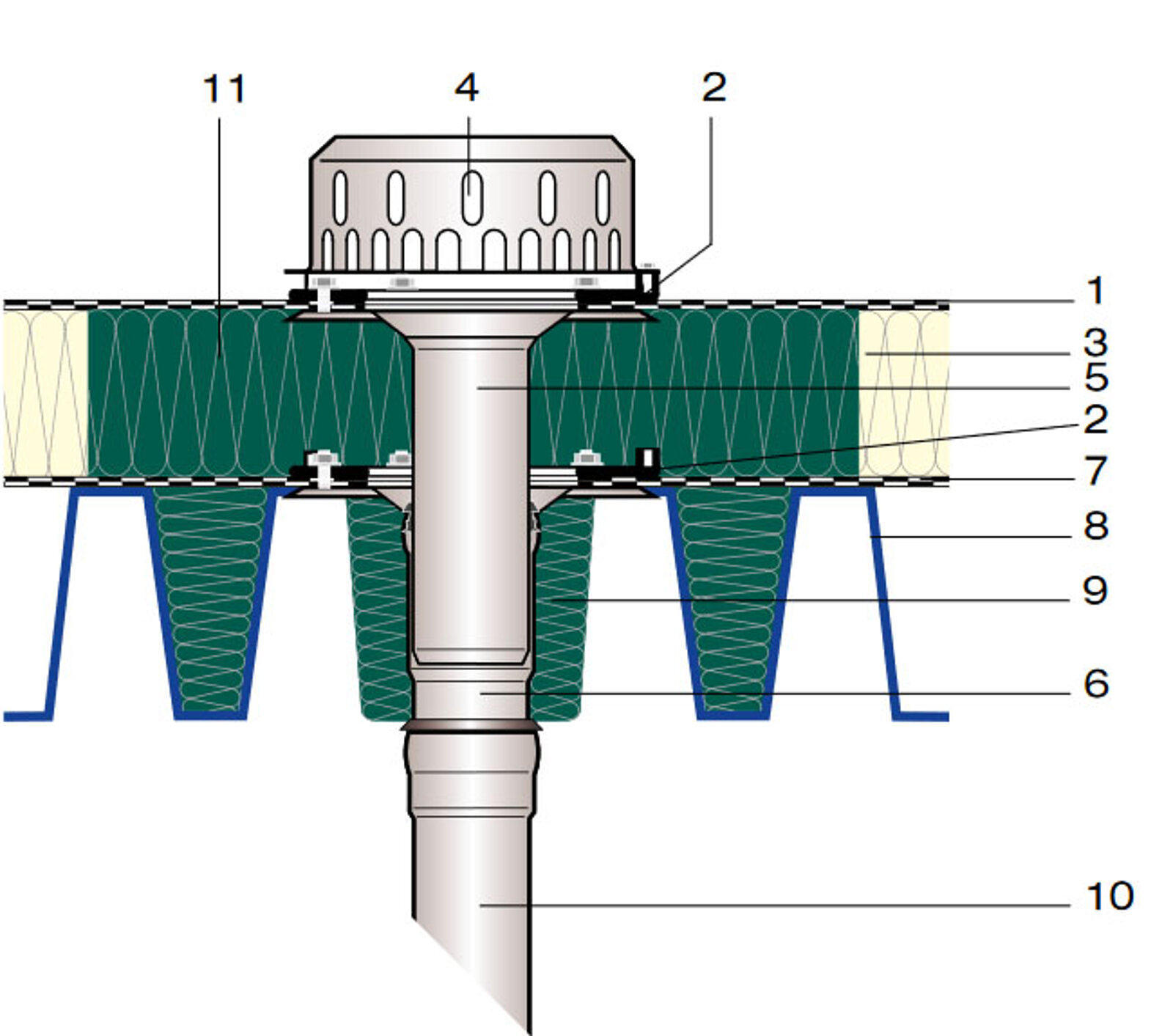

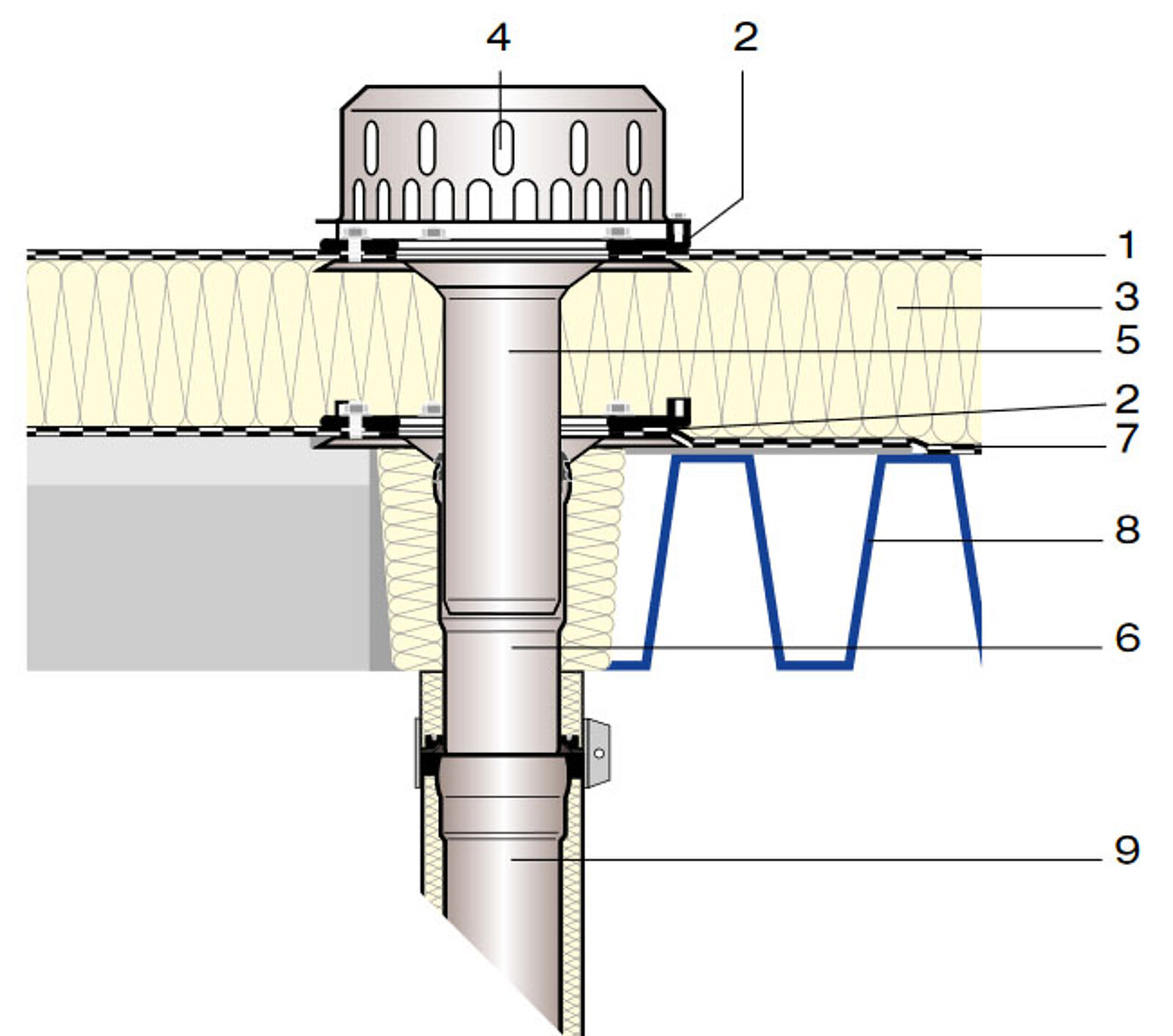

Warm roof on trapezoidal sheet metal with fixing plate, plastic waterproofing

3D model – application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation and fixing plate 19975.000X in a warm roof on trapezoidal sheet metal, plastic waterproofing, building cut along the drain axis
3D view: click and rotate with the mouse
Application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation and fixing plate 19975.000X in a warm roof on trapezoidal sheet metal, plastic waterproofing – oblique view from the front
Oblique view from the front
Application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation and fixing plate 19975.000X in a warm roof on trapezoidal sheet metal, plastic waterproofing – oblique view from the front, cut open
Oblique view from the front, cut open
Application example LORO-X DRAINLET Series 84 with standard hood: two-piece main drain 21522.100X and emergency drain 21722.100X DN 100 with thermal insulation and fixing plate 19975.000X in a warm roof on trapezoidal sheet metal, plastic waterproofing – view from the front, cut open
View from the front, cut open

Main drainage one-piece

LORO-DRAINLET® Flat roof drains with clamping flange, one-piece

DN 50 DN 70 DN 100 DN 125
Outlet
vertical		 a) without thermal insulation 21511.050X 21511.070X 21511.100X 21511.125X LORO-X 21511.100X LORO-DRAINLET drain in stainless steel with clamping flange vertical one-piece without insulation DN 100
b) with thermal insulation 21512.050X 21512.070X 21512.100X 21512.125X LORO-X 21512.100X LORO-DRAINLET drain made of stainless steel with clamping flange vertical one-piece with water insulation DN 100
c) with thermal insulation and heating 21513.050X 21513.070X 21513.100X 21513.125X LORO-X 21513.100X LORO-DRAINLET drain in stainless steel with clamping flange vertical one-piece with heat insulation and heating DN 100
Outlet
side		 a) without thermal insulation - 21514.070X 21514.100X 21514.125X LORO-X 21514.100X LORO-DRAINLET stainless steel drain with one-piece lateral clamping flange without heat insulation DN 100
b) with thermal insulation - 21515.070X 21515.100X 21515.125X LORO-X 21515.100X LORO-DRAINLET drain in stainless steel with one-piece lateral clamping flange with heat insulation DN 100
c) with thermal insulation and heating - 21516.070X 21516.100X 21516.125X LORO-X 21516.100X LORO-DRAINLET drain in stainless steel with clamping flange, one-piece, side entry, with heat insulation and heating DN 100

Emergency drainage one-piece

LORO-DRAINLET® Emergency flat roof drains with clamping flange, one-piece

DN 50 DN 70 DN 100
Outlet
vertical		 a) without thermal insulation 21711.050X 21711.070X 21711.100X LORO-X 21711.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange vertical one-piece without insulation DN 100
b) with thermal insulation 21712.050X 21712.070X 21712.100X LORO-X 21712.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, vertical, one-piece, with heat insulation DN 100
c) with thermal insulation and heating 21713.050X 21713.070X 21713.100X LORO-X 21713.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange vertical one-piece with heat insulation and heating DN 100
Outlet
side		 a) without thermal insulation - 21714.070X 21714.100X LORO-X 21714.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, one-piece, sideways, without heat insulation DN 100
b) with thermal insulation - 21715.070X 21715.100X LORO-X 21715.100X LORO-DRAINLET stainless steel emergency drain with one-piece lateral clamping flange with heat insulation DN 100
c) with thermal insulation and heating - 21716.070X
 21716.100X
 LORO-X 21716.100X LORO-DRAINLET emergency drain made of stainless steel with clamping flange at the side, one-piece with heat insulation and heating DN 100

Main drainage two-piece

LORO-DRAINLET® Flat roof drains with clamping flange, two piece

DN 50 DN 70 DN 100 DN 125
Outlet
vertical		 a) without thermal insulation 21521.050X 21521.070X 21521.100X 21521.125X LORO-X 21521.100X LORO-DRAINLET stainless steel drain with clamping flange, vertical, two-part, without heat insulation DN 100
b) with thermal insulation 21522.050X 21522.070X 21522.100X 21522.125X LORO-X 21522.100X LORO-DRAINLET drain in stainless steel with clamping flange vertical two-piece with heat insulation DN 100
c) with thermal insulation and heating 21523.050X 21523.070X 21523.100X 21523.125X LORO-X 21523.100X LORO-DRAINLET drain in stainless steel with clamping flange vertical two-part with heat insulation and heating DN 100
Outlet
side		 a) without thermal insulation - 21524.070X 21524.100X 21524.125X LORO-X 21524.100X LORO-DRAINLET drain in stainless steel with clamping flange, two-part, side entry, without heat insulation DN 100
b) with thermal insulation - 21525.070X 21525.100X 21525.125X LORO-X 21525.100X LORO-DRAINLET drain in stainless steel with two-part lateral clamping flange with heat insulation DN 100
c) with thermal insulation and heating - 21526.070X 21526.100X 21526.125X LORO-X 21526.100X LORO-DRAINLET drain in stainless steel with clamping flange, two-part, side entry, with heat insulation and heater DN 100

Emergency drainage two-piece

LORO-DRAINLET® Emergency flat roof drains with clamping flange, two-part

DN 50 DN 70 DN 100
Outlet
vertical		 a) without thermal insulation 21721.050X 21721.070X 21721.100X LORO-X 21721.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, vertical, two-part, without heat insulation DN 100
b) with thermal insulation 21722.050X 21722.070X 21722.100X LORO-X 21722.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, vertical, two-part, with heat insulation DN 100
c) with thermal insulation and heating 21723.050X 21723.070X 21723.100X LORO-X 21723.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, vertical, two-part with heat insulation and heater DN 100
Outlet
side		 a) without thermal insulation - 21734.070X 21734.100X LORO-X 21734.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, two-part, without heat insulation DN 100
b) with thermal insulation - 21735.070X 21735.100X LORO-X 21735.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, two-part, side entry, with heat insulation DN 100
c) with thermal insulation and heating - 21736.070X
 21736.100X
 LORO-X 21736.100X LORO-DRAINLET emergency drain in stainless steel with clamping flange, two-part, side entry, with heat insulation and heater DN 100

3D Installation-Video

Additional components

Additional components

LORO thermal insulation made of Foamglas, non-combustible - fire protection class A1, for LORO-DRAINLET/DRAINJET flat roof drains with clamping flange, two-piece
DN 50 DN 70 DN 100
for recessed flange, h=100 mm
vertical		 19845.050X 19845.070X 19845.100X LORO-X 19845.100X LORO insulation made of foam glass for DL DJ roof outlets DN 100
Compensating piece, h=40 mm 19844.050X 19844.070X 19844.100X LORO-X 19844.100X LORO foam glass balancing piece for DL DJ roof outlets DN 100

LORO thermal insulation, non-combustible - fire protection class A1, for LORO-DRAINLET/DRAINJET flat roof drains without pre-mounted thermal insulation
DN 50 DN 70 DN 100
for recessed flange, h=100 mm
vertical		 19995.050X 19995.070X 19995.100X LORO-X 19995.100X LORO thermal insulation for DL DJ non-combustible fire protection class A1 mounted DN 100
LORO mounting flange for DRAINLET (DL) and DRAINJET (DJ) drains.

The mounting flange fits precisely over the fixed flange of the LORO-X DRAINLET and DRAINJET drain and serves to secure the drain in the substrate, e.g. for wind uplift protection.
DN 070 DN 100 DN 125 LORO-X 21910.100X LORO fixing flange for roof outlet DLDJ series DN 100
Steel, galvanised 21910.070X 21910.100X 21910.125X
LORO fixing plate including fixing material for trapezoidal sheet metal roofs
Steel, hot-dip galvanized, 600 x 600 mm 19975.000X LORO-X 19975.000X LORO-Coating Plate for Roof Drains DJ DL Series
