Complete System LX659-5Xwith single, without insulation LORO-X DRAINJET flat roof drainage system, series 84(DL), one-piece, without thermal insulation, vertical outlet, for main drainage with gravity flow, discharge rate 9.5 l/s at 45 mm water level on the roof, with clamping flange as loose and fixed flange construction including compression seals, for bituminous and plastic roofing sheets, DRAINLET hood made of stainless steel, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m ventilated downpipe according to LX data sheet LX659, drain made of stainless steel, DN 125 Piece list according to Datasheet LX659-5X:
Alternative flanges according to Datasheet LX659       | LX659-5X single, without insulation  |
Complete System LX659-6Xwith double, without insulation LORO-X DRAINJET flat roof drainage system, series 84(DL), two-piece, without thermal insulation, vertical outlet, for main drainage with gravity flow, discharge rate 9.5 l/s at 45 mm water level on the roof, with clamping flange as loose and fixed flange construction including compression seals, for bituminous and plastic roofing sheets, DRAINLET hood made of stainless steel, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m nventilated downpipe according to LX data sheet LX659, drain made of stainless steel, DN 125 Piece list according to Datasheet LX659-6X:
Alternative flanges according to Datasheet LX659 | LX659-6X double, without insulation |
Complete System LX659-7Xwith single, with insulation LORO-X DRAINJET flat roof drainage system, series 84(DL), one-piece, with thermal insulation, vertical outlet, for main drainage with gravity flow, discharge rate 9.5 l/s at 45 mm water level on the roof, with clamping flange as loose and fixed flange construction including compression seals, for bituminous and plastic roofing sheets, DRAINLET hood made of stainless steel, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m ventilated downpipe according to LX data sheet LX659, drain made of stainless steel, DN 125 Piece list according to Datasheet LX659-7X:
Alternative flanges according to Datasheet LX659 | LX659-7X single, with insulation |
Complete System LX659-8Xwith double, with insulation LORO-X DRAINJET flat roof drainage system, series 84(DL), two-piece, with thermal insulation, vertical outlet, for main drainage with gravity flow, discharge rate 9.5 l/s at 45 mm water level on the roof, with clamping flange as loose and fixed flange construction including compression seals, for bituminous and plastic roofing sheets, DRAINLET hood made of stainless steel, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m ventilated downpipe according to LX data sheet LX659, drain made of stainless steel, DN 125 Piece list according to Datasheet LX659-8X:
Alternative flanges according to Datasheet LX659 | LX659-8X double, with insulation |
Complete System LX659-9Xwith single, with insulation and heating LORO-X DRAINJET flat roof drainage system, series 84(DL), one-piece, with thermal insulation and heating, vertical outlet, for main drainage with gravity flow, discharge rate 9.5 l/s at 45 mm water level on the roof, with clamping flange as loose and fixed flange construction including compression seals, for bituminous and plastic roofing sheets, DRAINLET hood made of stainless steel, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m ventilated downpipe according to LX data sheet LX659, drain made of stainless steel, DN 125 Piece list according to Datasheet LX659-9X:
Alternative flanges according to Datasheet LX659 | LX659-9X single, with insulation and heating |
Complete System LX659-10Xwith double, with insulation and heating LORO-X DRAINJET flat roof drainage system, series 84(DL), two-piece, with thermal insulation and heating, vertical outlet, for main drainage with gravity flow, discharge rate 9.5 l/s at 45 mm water level on the roof, with clamping flange as loose and fixed flange construction including compression seals, for bituminous and plastic roofing sheets, DRAINLET hood made of stainless steel, according to DIN EN 1253, proof of performance with standard-compliant testing system with 4.2 m ventilated downpipe according to LX data sheet LX659, drain made of stainless steel, DN 125 Piece list according to Datasheet LX659-10X:
Alternative flanges according to Datasheet LX659 | LX659-10X double, with insulation and heating |
1 x
2 x
1 x
1 x
1 x
6 x
1 x

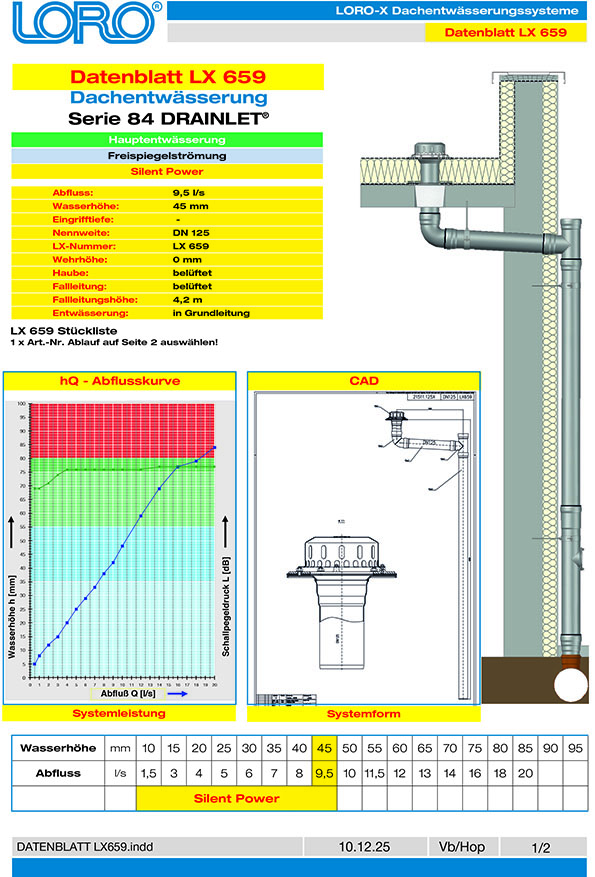

Specification sheet LX659
