16232.070XLORO-X BALK.-DI.2-TLF.BA.GES.O.WD DN 70DN 70 · 10,00 Kg · WG 4 · Stahl feuerverzinkt›
Artikel: 16232.070X – LORO-X BALK.-DI.2-TLF.BA.GES.O.WD DN 70
LORO-X direct balcony drain in two parts for balcony floors without thermal insulation DN 70
Popis
LORO direct balcony drain with connecting collar made of bitumen/EPDM composite, series H, according to DIN EN 1253 with raised quality standard, made of steel, hot-dip galvanized, long-life inside coating according to DIN EN ISO 2178 on the basis of a 2-component epoxy combination, colour: red-brown, lateral outlet, without thermal insulation, two-piece, consisting of drain pot, connecting collar, clamping ring without drainage openings, extension cartridge (for installation height 60 - 120 mm), connecting collar, clamping ring, drainage ring, holding fixture for strainer (for installation height 35 - 155 mm), round strainer, DN70
- Exportná cena LORO
- 400,30 €
- EAN kód
- 4038088068700
- ETIM trieda
- EC011398
- Menovitý priemer
- DN 70
- Hmotnosť
- 10,00 Kg (STK)
- Skupina produktov
- 4
- Colný sadzobník
- 73089098
- Produktfinder/Serie
- Link
- Materiál / Farba
- Stahl feuerverzinkt, Silber
Pokyny na použitie
kein Verwendungshinweis notwendig
Produktový dátový list (PDF)
CAD 2D (DXF)Doplnkové artikle
Kompletné systémy LX
Kompletný systém LX 905-13Xso zvodovým potrubím›
Kompletný systém LX 905-13X –
Popis
LORO direct balcony drain with connecting collar made of bitumen/EPDM composite, series H, according to DIN EN 1253, with raised quality standard, made of steel, hot-dip galvanized, long-life inside coating according to DIN EN ISO 2178 on the basis of a 2-component epoxy combination, colour: red-brown, lateral outlet, without thermal insulation, two-piece, consisting of drain pot, connecting collar, clamping ring without drainage openings, extension cartridge (for installation height 60 - 120 mm), connecting collar, clamping ring, drainage ring, holding fixture for strainer (for installation height 35 - 155 mm), round strainer, proof of performance according to specification sheet LX 905, DN 70

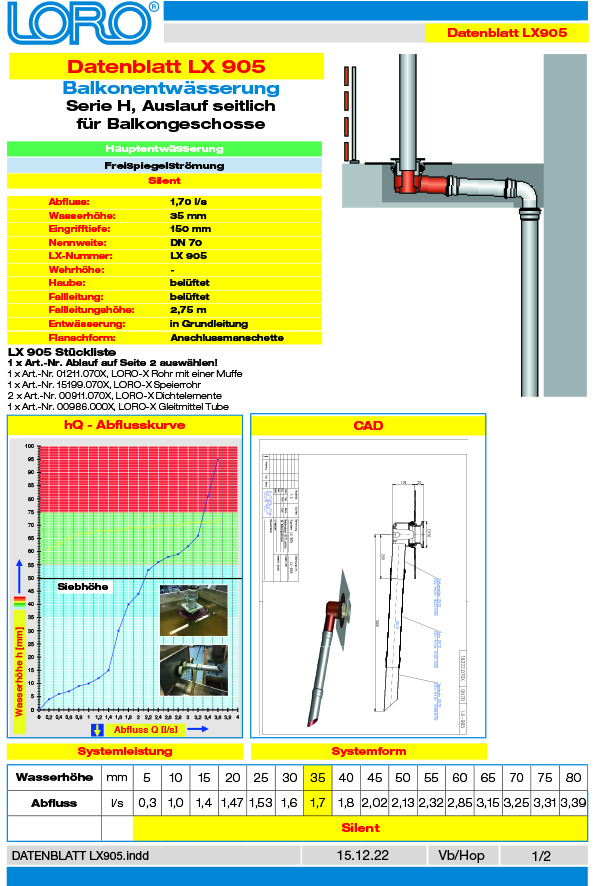

Zoznam dielov – Systémový dátový list LX905-13X
| 1× | | 16232.070X | LORO-X BALK.-DI.2-TLF.BA.GES.O.WD DN 70 | |
| 1× |  | 01211.070X | LORO-X PIPE WITH 1 SOCKET 750 MM DN 70 | |
| 1× |  | 15199.070X | LORO-X SPEIERROHR 250 MM + MUFFE, DN 70 | |
| 2× |  | 00911.070X | LORO-X SEALING ELEMENT SBR DN 70 | |
| 1× |  | 00986.000X | LORO-X LUBRICANT 250 G TUBE |
Alternatívne tvary prírub podľa systémového dátového listu LX905
Kompletný systém LX 2262-13Xso zvodovým potrubím›
Kompletný systém LX 2262-13X –
Popis
LORO direct balcony drain with connecting collar made of bitumen/EPDM composite, series H, according to DIN EN 1253, with raised quality standard, made of steel, hot-dip galvanized, long-life inside coating according to DIN EN ISO 2178 on the basis of a 2-component epoxy combination, colour: red-brown, lateral outlet, without thermal insulation, two-piece, consisting of drain pot, connecting collar, clamping ring without drainage openings, extension cartridge (for installation height 60 - 120 mm), connecting collar, clamping ring, drainage ring, holding fixture for strainer (for installation height 35 - 155 mm), round strainer, proof of performance according to specification sheet LX 2262, DN 70
Zoznam dielov – Systémový dátový list LX2262-13X
| 1× | | 16232.070X | LORO-X BALK.-DI.2-TLF.BA.GES.O.WD DN 70 | |
| 1× | | 01211.070X | LORO-X PIPE WITH 1 SOCKET 750 MM DN 70 | |
| 1× | | 15199.070X | LORO-X SPEIERROHR 250 MM + MUFFE, DN 70 | |
| 2× | | 00911.070X | LORO-X SEALING ELEMENT SBR DN 70 | |
| 1× | | 00986.000X | LORO-X LUBRICANT 250 G TUBE |
Alternatívne tvary prírub podľa systémového dátového listu LX2262
