20455.050XLX-AUFSATZELEMENT M.ECKFL.SR.V-AK,270 MMDN 50 · 2,30 Kg · WG 4 · Edelstahl›
Articolo: 20455.050X – LX-AUFSATZELEMENT M.ECKFL.SR.V-AK,270 MM
LORO-X Surface-mounted element with corner flange 270 mm long Series V-AK DN 50
Descrizione
LORO-X balcony extension unit for two piece version, series V-AK, with upstanded bonding flange for sealing from liquid plastic at wall corner areas, according to DIN EN 1253 with raised quality standard, made of stainless steel, consisting of: extension body with upstanded bonding cornerflange and sealing element DN70, made of stainless steel, DN50
- Prezzo export LORO
- 150,20 €
- Codice EAN
- 4038088108963
- Classe ETIM
- EC011398
- Diametro nominale
- DN 50
- Misure esterne (AxLxP)
- 366 x 218 x 218 mm
- Peso
- 2,30 Kg (STK)
- Gruppo prodotti
- 4
- Numero tariffa doganale
- 73072980
- Produktfinder/Serie
- Link
- Materiale / Colore
- Edelstahl, Silber
Note d'uso
LORO-Balkonablauf mit Aufsatzelemente, Serie V-AK für Balkonabdichtung aus Flüssigkunststoffen im Wandbereich. Zweiteilige Ausführung für wärmegedämmte Balkone, mit aufgekanteten Klebeflansch für Einbau in Wand-oder Eckbereichen.
Scheda tecnica del prodotto (PDF)
CAD 2D (DXF)Articoli complementari
Sistemi completi LX
Sistema completo LX 2270-13Xcon tubo pluviale›
Sistema completo LX 2270-13X –
Descrizione
LORO-X balcony extension unit for two piece version, series V-AK, with upstanded bonding flange for sealing from liquid plastic at wall corner areas, according to DIN EN 1253, with raised quality standard, made of stainless steel, consisting of: extension body with upstanded bonding cornerflange and sealing element DN70, made of stainless steel, strainer for upper balconies, proof of performance according to specification sheet LX 2270, DN50

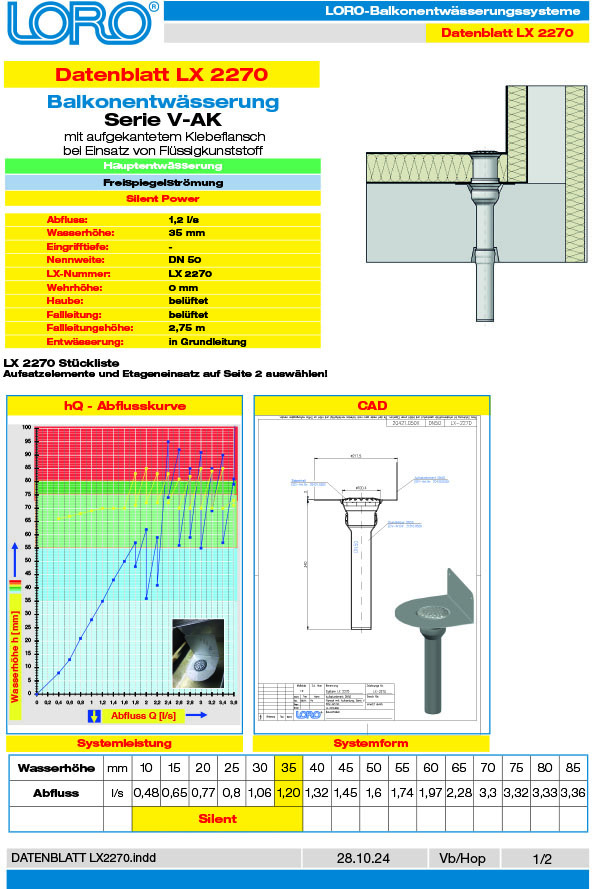

Distinta base – Scheda tecnica del sistema LX2270-13X
| 1× | | 20455.050X | LX-AUFSATZELEMENT M.ECKFL.SR.V-AK,270 MM | |
| 1× |  | 20426.050X | LORO-X AUFSATZELEM.M.KLEBEFL.SERIE V-FL. | |
| 1× |  | 20450.050X | LX-AUFSATZELEMENT M.ECKFL. SR.V-AK DN50 | |
| 1× |  | 20421.050X | LORO-X SIEBEINH.SIEB RUND,OHNE ROHRDUCHF | |
| 1× |  | 00986.000X | LORO-X LUBRICANT 250 G TUBE |
Forme alternative di flangia secondo scheda tecnica del sistema LX2270
Sistema completo LX 2271-13Xcon tubo pluviale›
Sistema completo LX 2271-13X –
Descrizione
LORO-X balcony extension unit for two piece version, series V-AK, with upstanded bonding flange for sealing from liquid plastic at wall corner areas, according to DIN EN 1253, with raised quality standard, made of stainless steel, consisting of: extension body with upstanded bonding cornerflange and sealing element DN70, made of stainless steel, strainer for pipe opening for balcony floors, proof of performance according to specification sheet LX 2271 DN50
Distinta base – Scheda tecnica del sistema LX2271-13X
| 1× | | 20455.050X | LX-AUFSATZELEMENT M.ECKFL.SR.V-AK,270 MM | |
| 1× | | 20426.050X | LORO-X AUFSATZELEM.M.KLEBEFL.SERIE V-FL. | |
| 1× |  | 20450.100X | LX-AUFSATZELEMENT M.ECKFL. SR.V-AK DN100 | |
| 1× |  | 20422.050X | LX-SIEBEINH.SIEB RUND,M.ROHRDURCHF.SR.V | |
| 1× | | 00986.000X | LORO-X LUBRICANT 250 G TUBE |
Forme alternative di flangia secondo scheda tecnica del sistema LX2271
Sistema completo LX 2272-13Xcon tubo pluviale›
Sistema completo LX 2272-13X –
Descrizione
LORO-X balcony extension unit for two piece version, series V-AK, with upstanded bonding flange for sealing from liquid plastic at wall corner areas, according to DIN EN 1253, with raised quality standard, made of stainless steel, consisting of: extension body with upstanded bonding cornerflange and sealing element DN70, made of stainless steel, holding fixture for strainer (for installation heigth 35-150 mm), strainer for upper balconies, proof of performance according to specification sheet LX 2272, DN50
Distinta base – Scheda tecnica del sistema LX2272-13X
| 1× | | 20455.050X | LX-AUFSATZELEMENT M.ECKFL.SR.V-AK,270 MM | |
| 1× | | 20426.050X | LORO-X AUFSATZELEM.M.KLEBEFL.SERIE V-FL. | |
| 1× | | 20450.050X | LX-AUFSATZELEMENT M.ECKFL. SR.V-AK DN50 | |
| 1× |  | 20424.050X | LX-SIEBEINH.SIEB QUARD.O,ROHRDURCHF.SR.V | |
| 1× | | 00986.000X | LORO-X LUBRICANT 250 G TUBE |
Forme alternative di flangia secondo scheda tecnica del sistema LX2272
Sistema completo LX 2273-13Xcon tubo pluviale›
Sistema completo LX 2273-13X –
Descrizione
LORO-X balcony extension unit for two piece version, series V-AK, with upstanded bonding flange for sealing from liquid plastic at wall areas, according to DIN EN 1253, with raised quality standard, made of stainless steel, consisting of: extension body with upstanded bonding flange and sealing element DN70, made of stainless steel, holding fixure for strainer (for installation height 35-150 mm), strainer for pipe opening for balcony floors, proof of performance according to specification sheet LX 2273, DN50
Distinta base – Scheda tecnica del sistema LX2273-13X
| 1× | | 20455.050X | LX-AUFSATZELEMENT M.ECKFL.SR.V-AK,270 MM | |
| 1× | | 20426.050X | LORO-X AUFSATZELEM.M.KLEBEFL.SERIE V-FL. | |
| 1× | | 20450.050X | LX-AUFSATZELEMENT M.ECKFL. SR.V-AK DN50 | |
| 1× |  | 20423.050X | LX-SIEBEINH.SIEB QUADR.M.ROHRDURCHF.SR.V | |
| 1× | | 00986.000X | LORO-X LUBRICANT 250 G TUBE |
Forme alternative di flangia secondo scheda tecnica del sistema LX2273
