16716.050XLORO-VERSAL ABL.KÖRP.F.BALKONGESCH.O.GEWDN 50 · 1,20 Kg · WG 4 · Stahl feuerverzinkt›
Artikkel: 16716.050X – LORO-VERSAL ABL.KÖRP.F.BALKONGESCH.O.GEW
LORO-VERSAL drain body for balcony floors without thread DN 50
Beskrivelse
LORO-X VERSAL direct balcony drain, series J with clamping ring, one-piece, without thermal insulation, vertical outlet, according to DIN EN 1253 with raised quality standard, made of steel, hot-dip galvanized, with long-life coating according to DIN EN ISO 2178 on the basis of a 2-component epoxy combination, colour: red-brown, without thread and long socket, for balcony floors, DN50
- LORO eksportpris
- 73,50 €
- EAN-kode
- 4038088072691
- ETIM-klasse
- EC011398
- Nominell diameter
- DN 50
- Utvendige mål (HxBxL)
- 152 x 152 x 400 mm
- Vekt
- 1,20 Kg (STK)
- Produktgruppe
- 4
- Tolltariffnummer
- 73089098
- Produktfinder/Serie
- Link
- Materiale / Farge
- Stahl feuerverzinkt, Silber
Bruksanvisning
kein Verwendungshinweis notwendig
Tilbakemelding om denne artikkelen
Brukseksempler for denne artikkelen:
Brukseksempel 1 (tysk): Balkonentwässerung – Einsatzbeispiel, Serie J – 1 - Kompletteinheit Serie J für
Brukseksempel 2 (tysk): Balkonentwässerung – Einsatzbeispiel, Serie J – 1 - Kompletteinheit Serie J für LX-komplettsystemer
Komplettsystem LX 2205-12Xmed nedløpsrør›
Komplettsystem LX 2205-12X –
Beskrivelse
LORO-X VERSAL direct balcony drain, series J with clamping ring, one-piece, without thermal insulation, vertical outlet, according to DIN EN 1253 with raised quality standard, made of steel, hot-dip galvanized, with long-life coating according to DIN EN ISO 2178 on the basis of a 2-component epoxy combination, colour: red-brown, without thread and long socket, for balcony floors, proof of performance according to specification sheet LX 2205, DN50

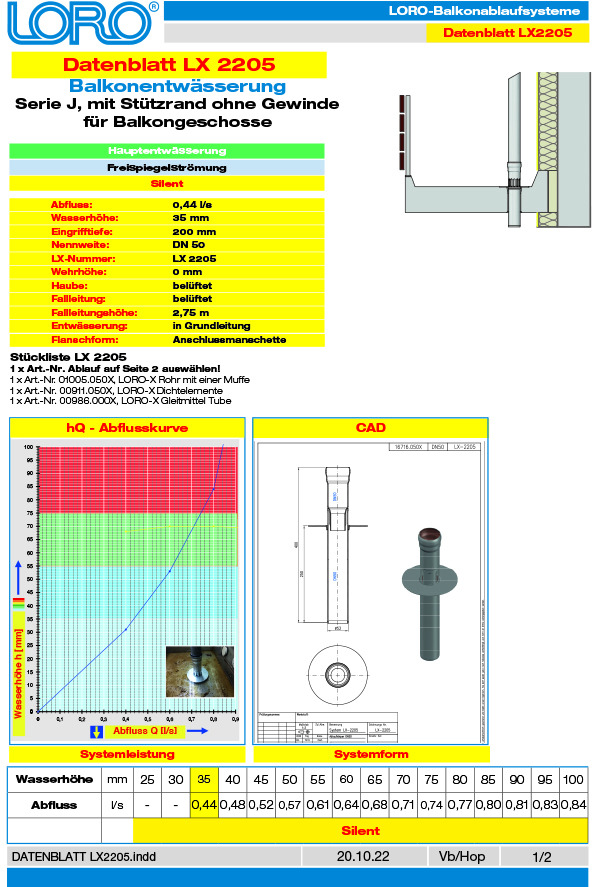

Stykkliste – Systemdatablad LX2205-12X
| 1× | ![]() | 16716.050X | LORO-VERSAL ABL.KÖRP.F.BALKONGESCH.O.GEW | |
| 1× | ![]() | 00986.000X | LORO-X LUBRICANT 250 G TUBE |
CAD 2D (DXF)
